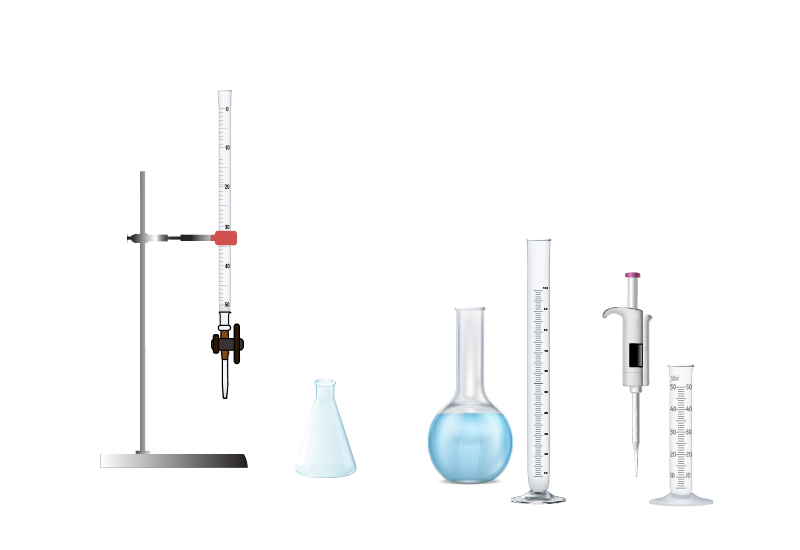

Step0: Familiar yourself with the instruments & glassware
Burette
Conical flask
Volumetric flask
Measuring
Cylinder
Measuring
Cylinder
Micro Pipette
Step1: Chemical reagents/solutions required
Standardization of DCPIP Dye solution
Step2: Take 5 ml of standard ascorbic acid solution in the conical flask
click to suck ascorbic acid
click to pour in conical flasks
Step3: Add 5 ml of HPO3 solution in the conical flask
click to suck HPO3
click to pour in conical flasks
Step4: Titrate the mixture with DCPIP dye solution
click to place funnel
click to pour in dye
click to remove funnel
click to place flask
start titration
stop titration
| Sample | Titrant used |
|---|---|
| standard sample |
Titration Completed
Step5: Calculation of Dye factor
| Dye Factor = |
0.5
|
|---|---|
| Titrant used |
Titrant Used = 6.1 ml
| Dye Factor = |
0.5
|
= 0.08 |
|---|---|---|
| 6.1 |
Analysis of sample
Step6: Selection of sample
select this sample
select this sample
select this sample
select this sample
Step7: Take out 50 ml juice in four different conical flasks marked as J1, J2, J3, J4
Fill J1
Fill J2
Fill J3
Fill J4
Step8: Heat the J2, J3, J4 sample at 60, 75, 90°C respectively
Turn on
Place J2
Place J3
Place J4
PT 00℃
ST 00℃
10:00
Step9: Pipette out 10 ml juice from each sample flask and pour to the four different conical flask
Pipette out J1
Pipette out J2
Pipette out J3
Pipette out J4
Step10: Add 90 ml of 3% HPO3 solution in each conical flask conical flask
Add in J1
Add in J2
Add in J3
Add in J4
Step11: Titrate each sample with DCPIP dye solution to a pink color which persists for 15s observation
Place funnel
Pour Dye
Remove funnel
Tirate J1
Tirate J2
Tirate J3
Tirate J4
start titration
stop titration
Titration Completed
| Sample | Titrant used |
|---|---|
| J1 | |
| J2 | |
| J3 | |
| J4 |

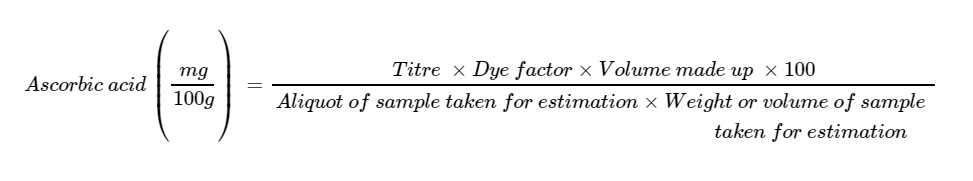

Calculation & Result
| Sample Name | Treatment | Titrant Used |
|---|---|---|
| J1 | Fresh | |
| J2 | Heated at 60C for 10 min | |
| J3 | Heated at 75C for 10 min | |
| J4 | Heated at 90C for 10 min |
